Shasta Vent 8 Inch Tee with Cap

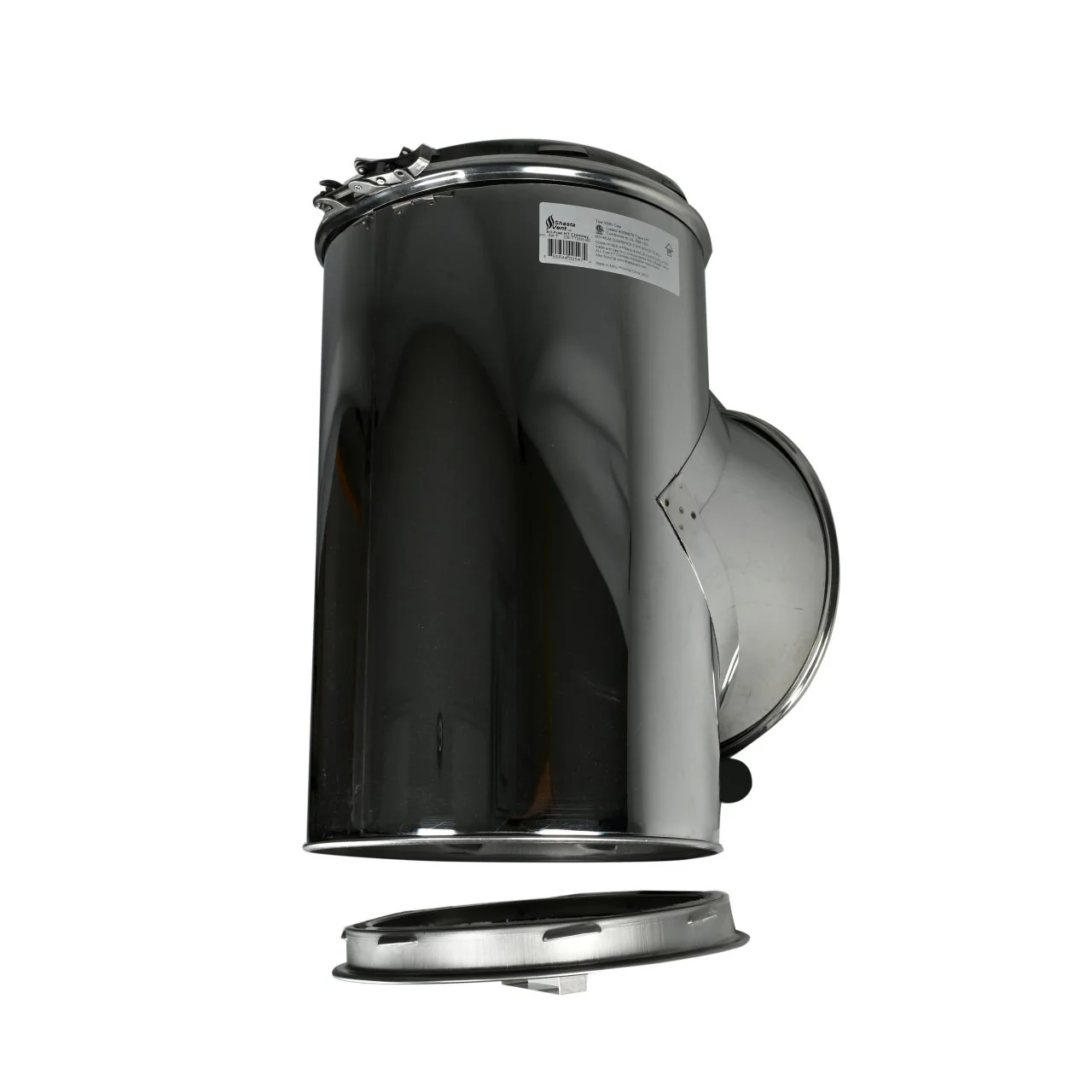

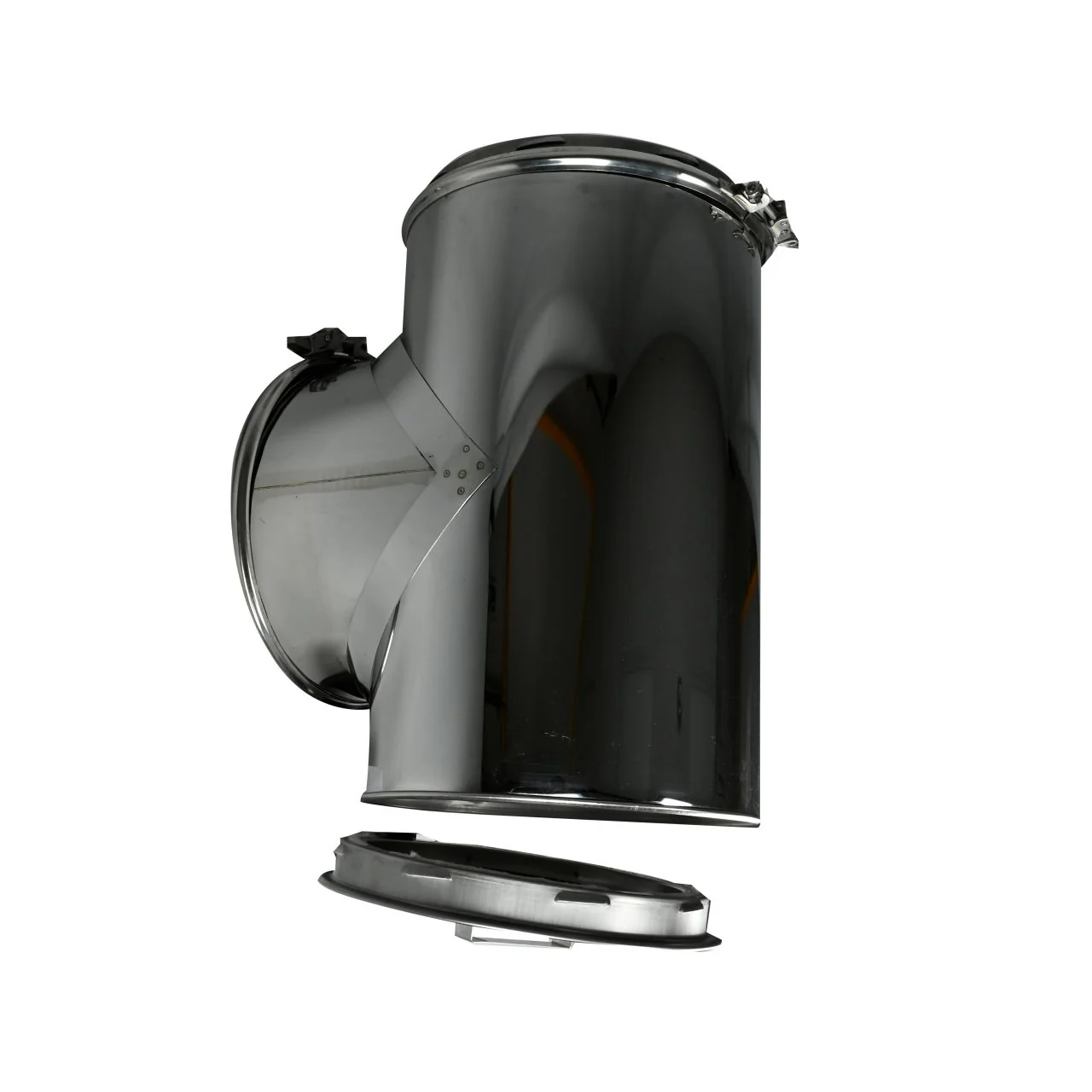

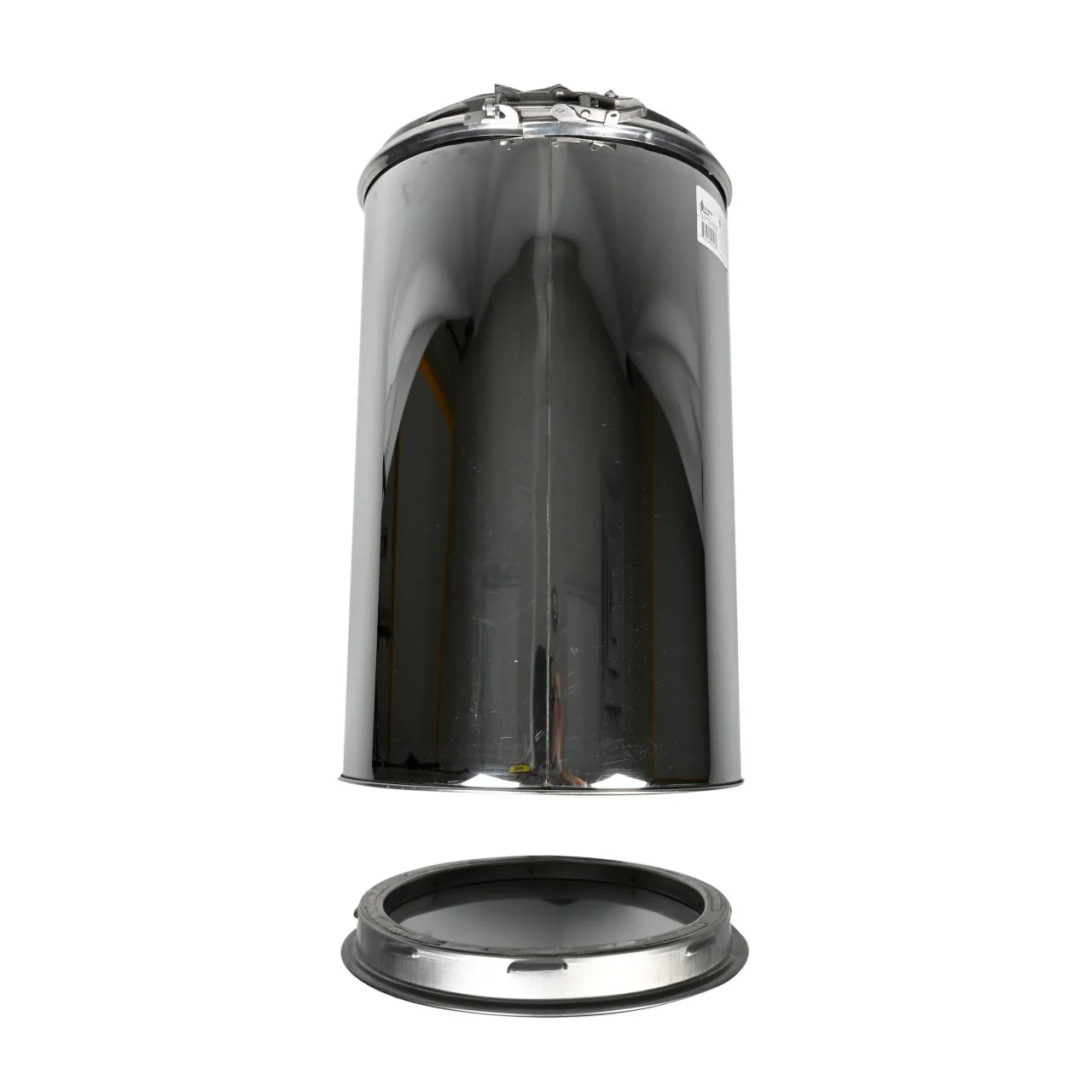

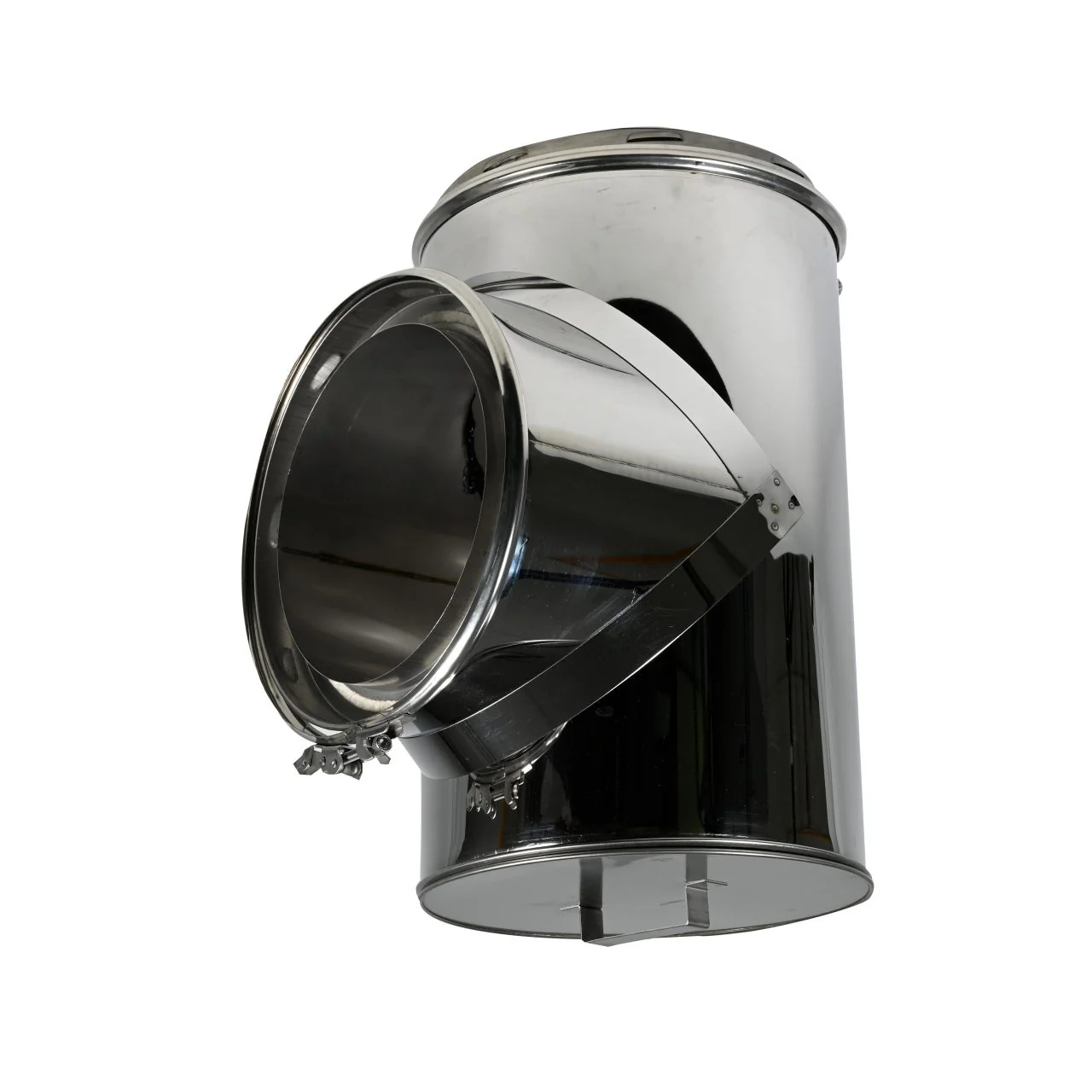

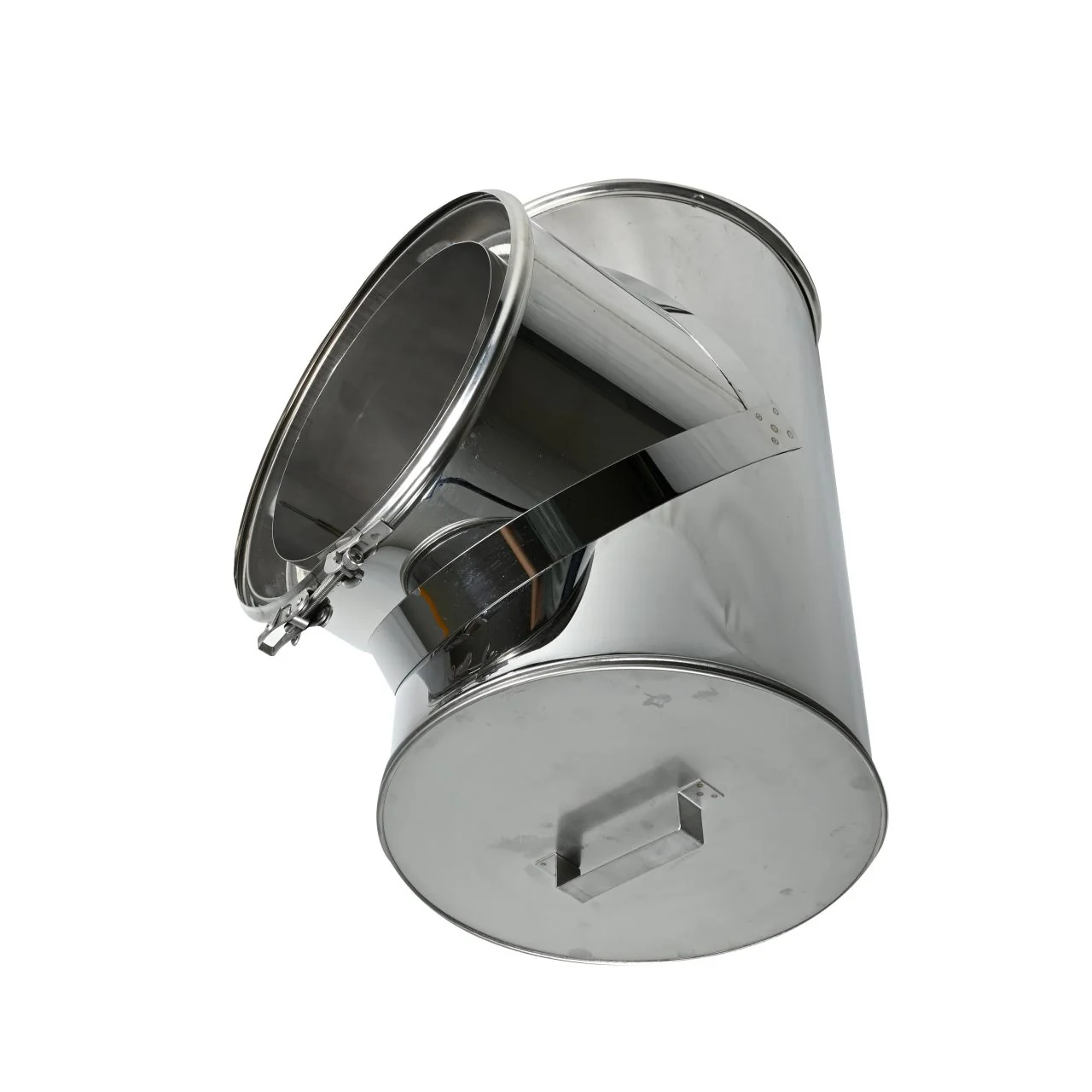

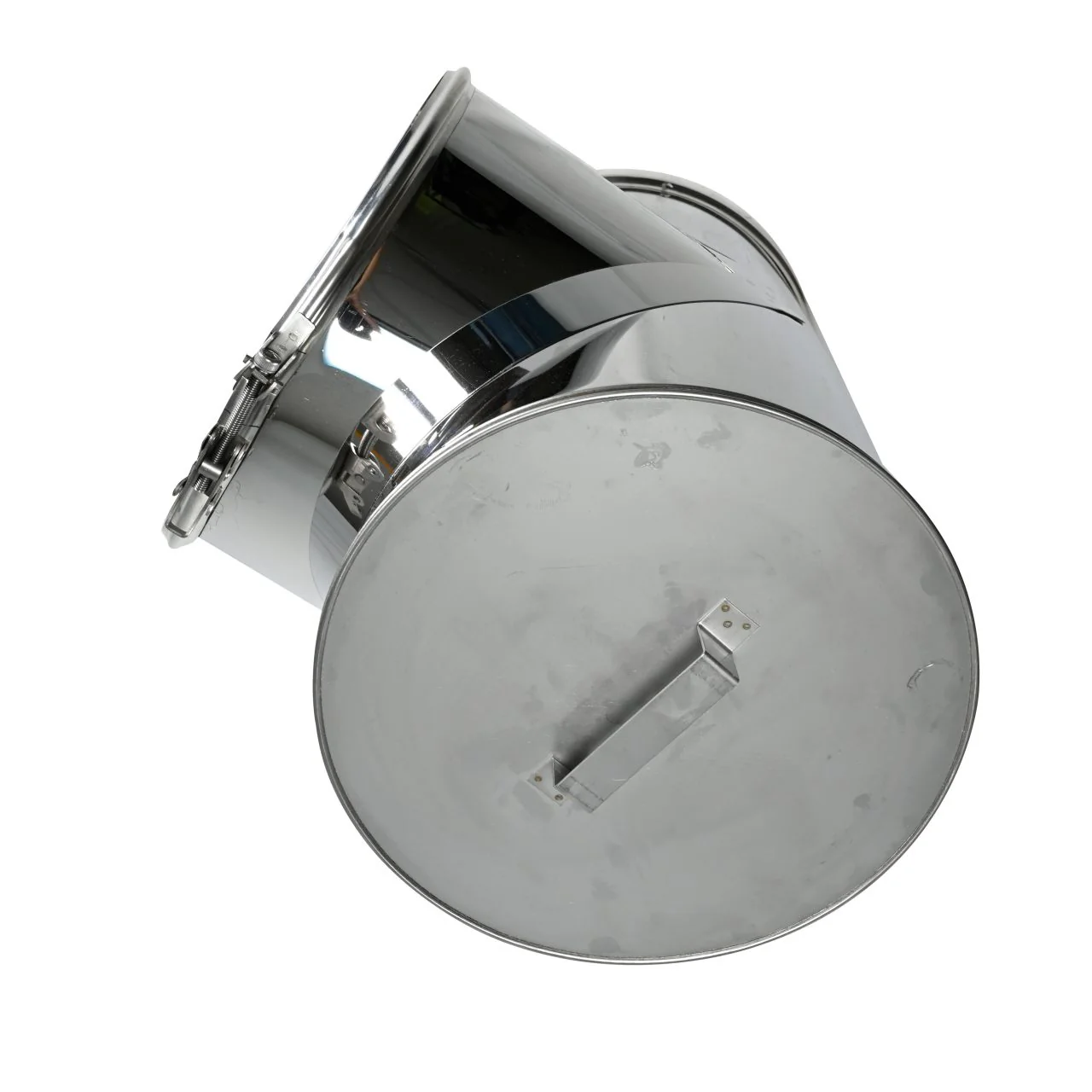

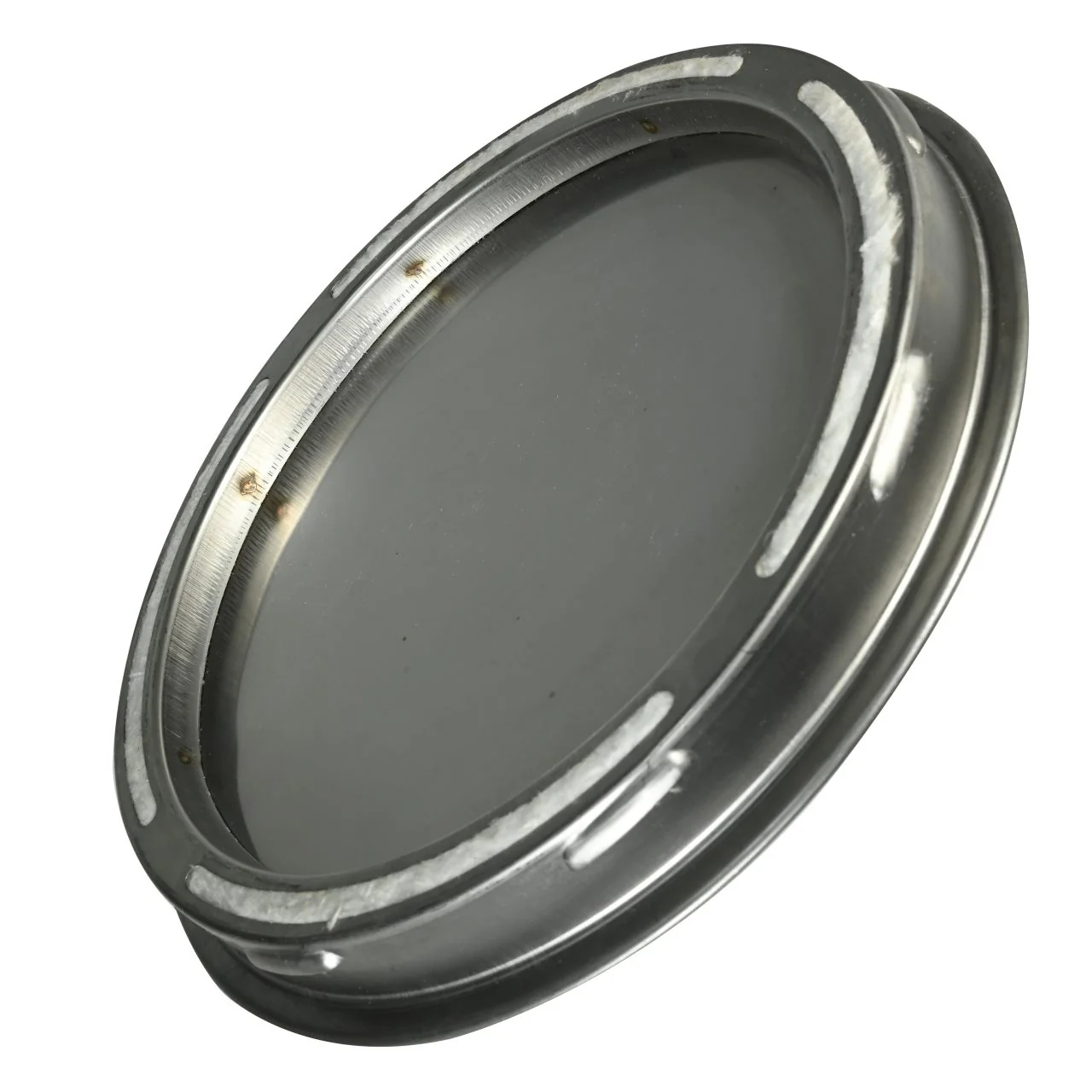

A Tee is used together with a Wall thimble for a through-the-wall installation. The Tee provides access to clean the chimney and changes the exhaust flow from horizontal to vertical. The Tee Cap is provided with the Tee and twist-locks to the bottom of the Tee. A chimney pipe section can also be installed below the Tee, and then the Tee Cap placed at the bottom of that chimney pipe section if needed.
Additional Information:

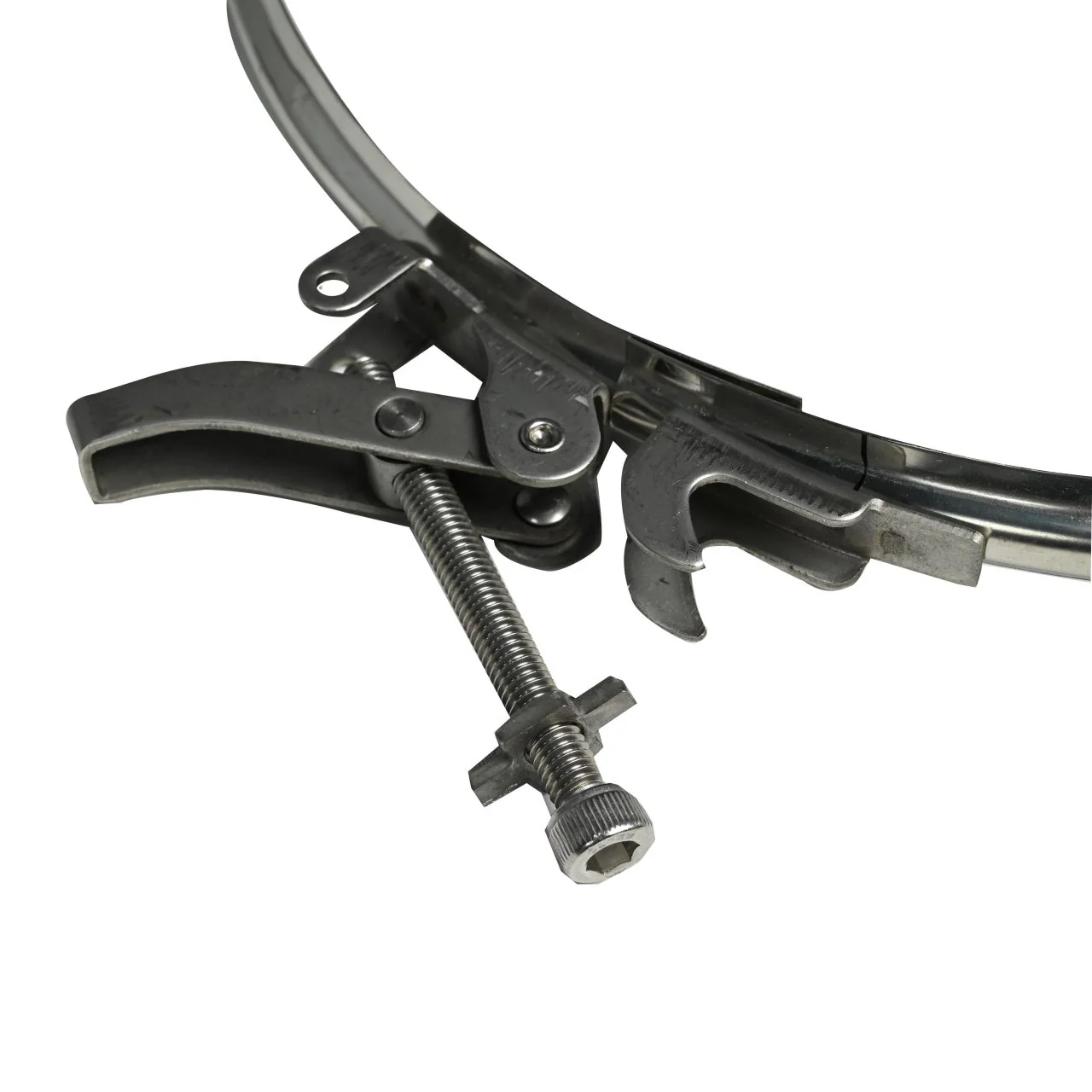

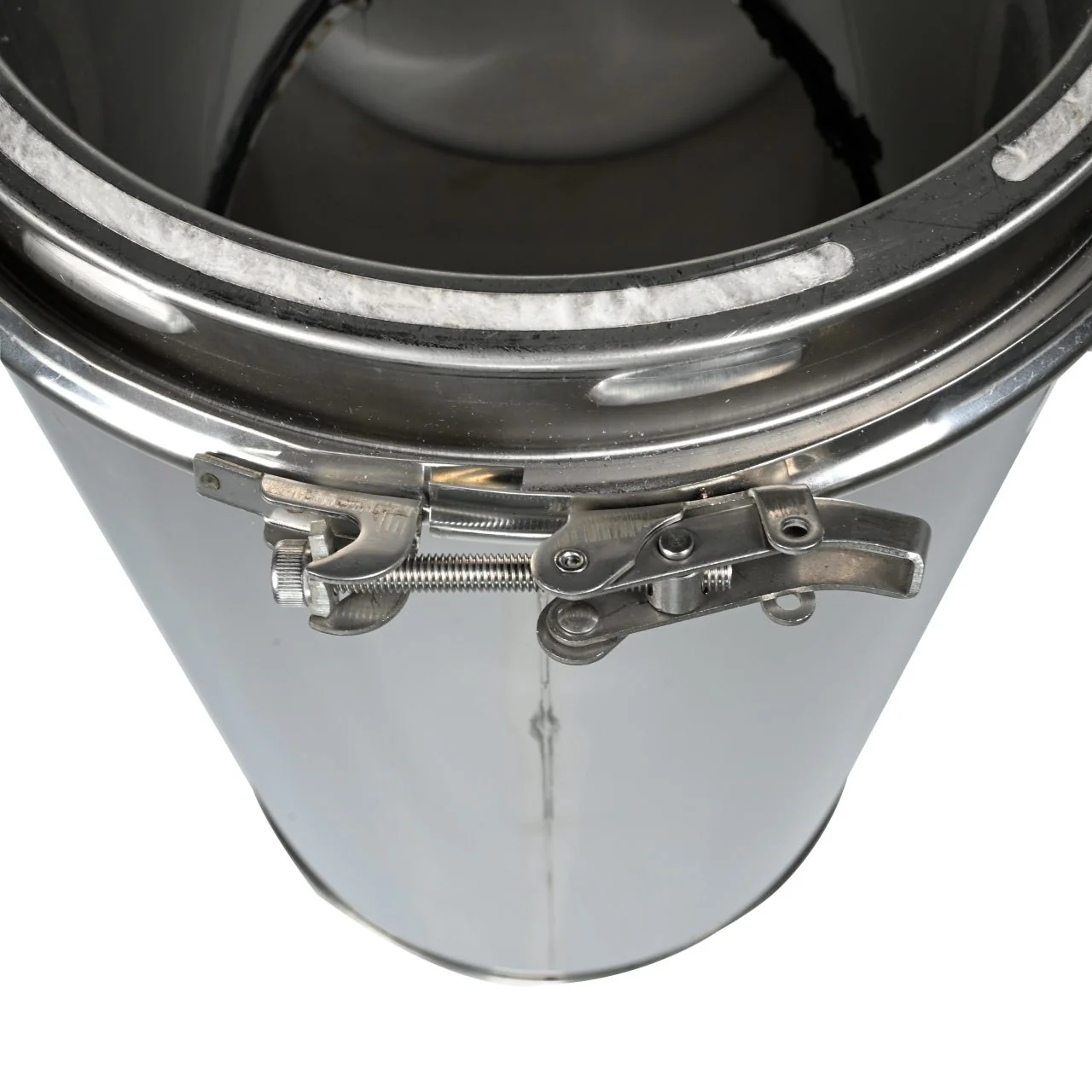

Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire
ShastaVent Catalog
Installation Instructions
Description
A Tee is used together with a Wall thimble for a through-the-wall installation. The Tee provides access to clean the chimney and changes the exhaust flow from horizontal to vertical. The Tee Cap is provided with the Tee and twist-locks to the bottom of the Tee. A chimney pipe section can also be installed below the Tee, and then the Tee Cap placed at the bottom of that chimney pipe section if needed.
Additional Information:
Shasta Vent All-Fuel HT Chimney is a double wall, solid-filled residential chimney featuring .020" type 304 Stainless Steel inner and outer walls with a 2" clearance to combustibles. All-Fuel HT Chimney also features precision engineered twist-lock end rings and quick and easy Locking Bands. The high-temperature ceramic blanket insulation is encased between the stainless steel walls of the pipe sections to maintain a strong draft, while maintaining a relatively cooler temperature on the exterior wall. In installations where offsets are required up to four 30 Degree elbows, each capable of rotating 360 Degrees, can be used in the system. The Shasta Vent All-Fuel HT Chimney is ETL Listed by Intertek to the HT requirements of UL 103. Tested to 1000 Degrees F continuously, 1400 Degrees F for 1-hour, and 3x 2100 Degrees F for 10-minutes as would be encountered in a creosote fire
